CPCC Canister Tube Anodes

Price: 100.0~1000.0 USD
Payment Terms: T/T,L/C,WU
Place of Origin: Shaanxi, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: TJC
Production Capacity: 100 pcs per day
Delivery Date: According to the Client's o...
Substrate: Titanium ASTM B338 Grade 1
Quality: Confirm to system standard ...
Means of Transport: Ocean,Land,Air
Packing: Pls refer to the photos of ...
Brand Name: Taijin
Canister: Galvanized steel Tube
Please input attribute name: Please input the attribute ...

Impressed current cathodic protection anodes are available in optional metal canisters for installation

Titanium MMO canistered anode



1. Substrate:

1) Titanium ASTMB338 Grade 1 or Grade2

Composition

C

max 0.08%

N

max 0.03%

H

max 0.015%

Fe

max 0.20%

O

max 0.18%

Residual

max each 0.1%

Residual

max total 0.4%

Ti

balance


2) Coating Catalyst:Mixed Metal Oxide (Main Component: Iridum Oxide for soil &fresh water, Ruthenium Oxide for Sea Water)

2. Sketch of the CPCC Canister(Just give an example)

Titanium MMO canistered anode



3. Specification

1) MMOTube anode:

Titanium MMO canistered anode

Diameter (mm)

Wall Thickness

(mm)

Length

(mm)

Weight/PC

(kg)

Surface Area/PC

(m2)

Working life

(year)

16

1.0

1000

0.212

0.05

>20

19

1.0

1000

0.254

0.06

>20

25

1.0

1000

0.339

0.0785

>20

25

1.5

1000

0.498

0.0785

>20

32

1.0

1000

0.438

0.121

>20

321.510000.6460.121

>20


2) Canister:

Titanium MMO canistered anode

Titanium MMO canistered anode

Standard canister diameters are 2", 3", 4", 6", 8" and 10".
Canister lengths can vary as needed

3) Coke Breeze

Just give 1 type for example, other type as needed.

PITCH COKE

Description

FC(MIN)(%)

S   (MAX)(%)

ASH(MAX)(%)

V.M.(MAX)(%)

MOISTURE(MAX)(%)

SIZE(90%)

PITCH COKE

99.00

0.15

0.50

0.50

0.50

0-1MM

PITCH COKE

99.00

0.15

0.50

0.50

0.50

1-5MM

PITCH COKE

99.00

0.15

0.50

0.50

0.50

5-10MM

PITCH COKE

99.00

0.15

0.50

0.50

0.50

10-20MM

PITCH COK

99.00

0.15

0.50

0.50

0.50

5-25MM

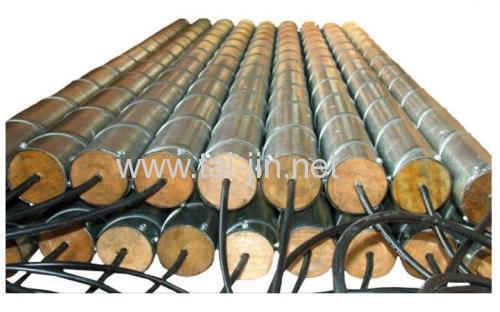

4) Canister Tube Anode

Titanium MMO Canistered Anode from Xi

4. Projects & Patents

a) Projects:


1.High Effective and Energy Saving Titanium Anode Used for Hydrometallurgy

2.The Development of Green and Novel Glass-to Metal Sealing Product

3.The Research and Production of High performance of Titanium Anode Composite Materials

4.The Research and Production of the Cathode Drum Used in Electrolyzing Copper Foil


b) Patents


1.A Kind of Brushing Device Used in Production of Titanium Ribbon and Titanium Mesh Ribbon

2.Dipping solution of the Coordination Compounds of Platinum and Prepare the Platinum Coating with it.

3.A Titanium Anode Device Used in a hydrometallurgical Electrodeposition of Metals

4.The Method of Removing Titanium Anode Coating


5. The List of Products from Xi'an Taijin

² Anodes Impressed Current for Cathodic Protection

Titanium Anodes

1)Mixed Metal Oxide Ti Wire & Piggy Back Wire Anode

2)Mixed Metal Oxide Ti Ribbon & Mesh Ribbon Anode

3)MMO/Platinized Ti Tubular & Anode string &Canister Anode

4)MMO/Platinized Ti Rod & Probe Anode

5)MMO/Platinized Ti Discrete Anode

6)MMO/Platinized Ti Disk & Sheet & Plate Anode

High Silicon Cast Iron Anode

1)HSCI Rod Anode

2)HSCI Tubular Anode

Cathodic Protection Materials

1)CP Wire and Cable

2)Anode Calcined Petroleum Coke Backfill

² Galvanic Anode

Magnesium anode

1)MG High Potential Anode

2)H-1 Alloy Mg Anode

3)Pre-packaged Mg Anode

4)Cast Mg Rod AZ-63 Alloy

5)Mg Extruded Rod /Ribbon Anode

Aluminum anode

1)Aluminum Cast Anode

2)Aluminum Extruded Rod Anode

Zinc Anode

1)Zinc Cast Anode

2)Zinc Ribbon anode

² Titanium Anodes Used in Other Field

1)Mixed Metal Oxide Titanium Anode for Hydrometallurgy

2)Mixed Metal Oxide Titanium Anode for Electrolysing Copper/ Aluminum Foil

3)Mixed Metal Oxide/Platinized Titanium Anode for Sodium Hypochlorite and Seawater Electrolysis

² Titanium Product

1)Titanium Clad Copper Metal Material

2)Titanium Art Products

3)Titanium Fasteners



6. Equipment

Titanium MMO Tube Anode for Impressed Current Cathodic Protection

Titanium MMO Tube Anode for Impressed Current Cathodic Protection

Titanium MMO Tube Anode for Impressed Current Cathodic Protection

Titanium MMO Tube Anode for Impressed Current Cathodic Protection

Titanium MMO Tube Anode for Impressed Current Cathodic Protection
