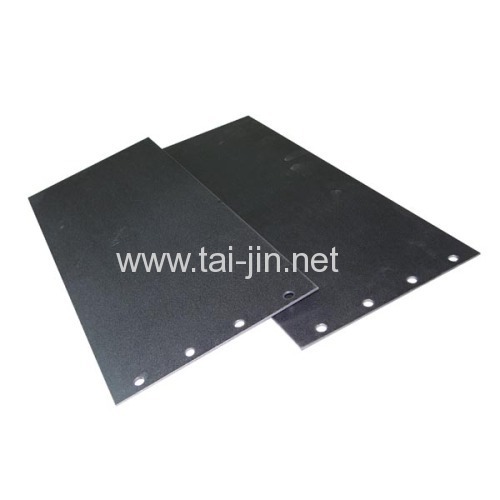

MMO Coated Titanium Anodes for Aluminum Foil Forming

Price: 50.0~1000.0 USD
Place of Origin: Shaanxi, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: TJAl
Packing: Plastic or paper as inside,...
Brand Name: TaiJin
Coating Catalyst: Iro2 and Ta2O5
Country of origin: China
Shape: Different dimension is avai...
Substrate: ASTM B265 Gr1 or Gr2
Production Capacity: 500 pieces 15 days
Delivery Date: 2 days to 15 days depend on...
Application: Aluminum Foil Forming
Color: Black
Ti content: 99.9%
Powder or not: Not powder
Please input attribute name: Please input the attribute ...

Iridium Coated Titanium Anode for Aluminium Foil are production & designed by Xi'an Taijin Co.

MMO Titanium Anode for Aluminum Foil Forming



Mixed Metal Oxide(MMO) Titanium Anode for Aluminum Foil Forming is a durable anode with industrially proven life time characteristics,ensures an even current distribution.

1. Substrate & Coating

Titanium ASTM B265 Grade1

1)Composition

C

max 0.08%

N

max 0.03%

H

max 0.015%

Fe

max 0.20%

O

max 0.18%

Residual

max each 0.1%

Residual

max total 0.4%

Ti

balance



2. Working Parameters

1) Current density: ≤2000A/M2

2) Max content of Fluoride ion :  Around 200PPM

3. Production Flow of MMO Titanium Anodes for Aluminum Foil Forming

Raw material --- Mechincal Machining---Sand-blasting & Picking----Coating---Inspection---Package

4. Quantity Gurantee

(1) Main quality indicators: titanium substrate, precious metal ratio, accelerated life, coating binding force to the titanium substrate(coating adhesion)

(2) With advanced technology & equipment, abundant experiences and skilled workers,during the production of Titanium Anode, each process must be strictly supervised and tested, including the surface treatment of titanium material, coating quality, coating evenness, coating binding force to the titanium substrate(coating adhesion) and so on.

(3) We have own R&D, Production and Sales department, we always struggling to supply the product with the most excellent quality and the most favorable price and supply the most efficient service.

(4) Strict Pre-delivery inspection for each order, the original Mill Test Certificate available to attach to the delivery

(5) Warmly welcome you send inquiry to us.



5. Equipmet


Mechnical Machine

MMO Titanium Anode for Aluminum Foil Forming


Precise Temperature Control Resistance Furnace

MMO Coated Titanium Mesh Ribbon Anode




Coating Thickness Test

MMO Coated Titanium Mesh Ribbon Anode




5. Products

MMO Titanium Anode for Aluminum Foil FormingMMO Titanium Anode for Aluminum Foil Forming
